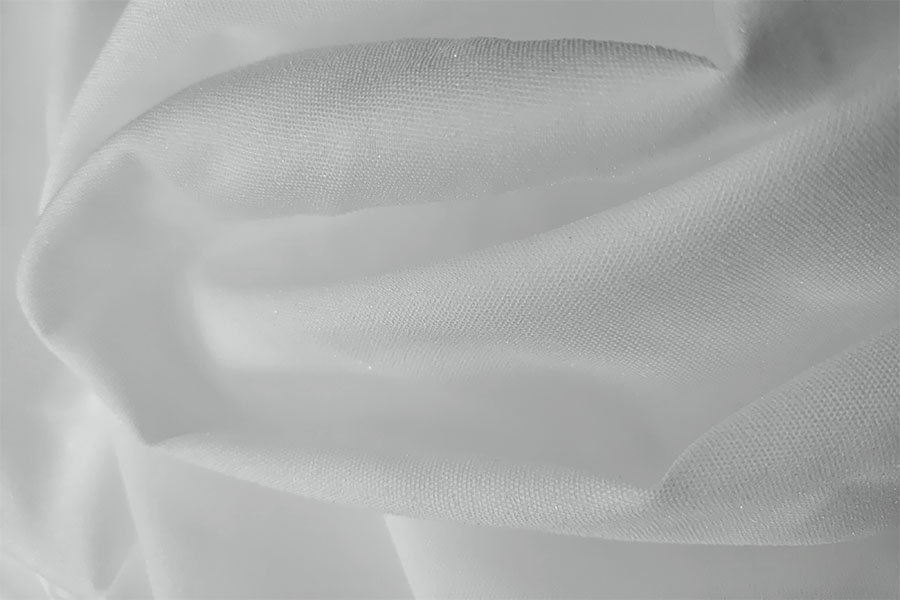

woven dot fusing interlining 5013-1

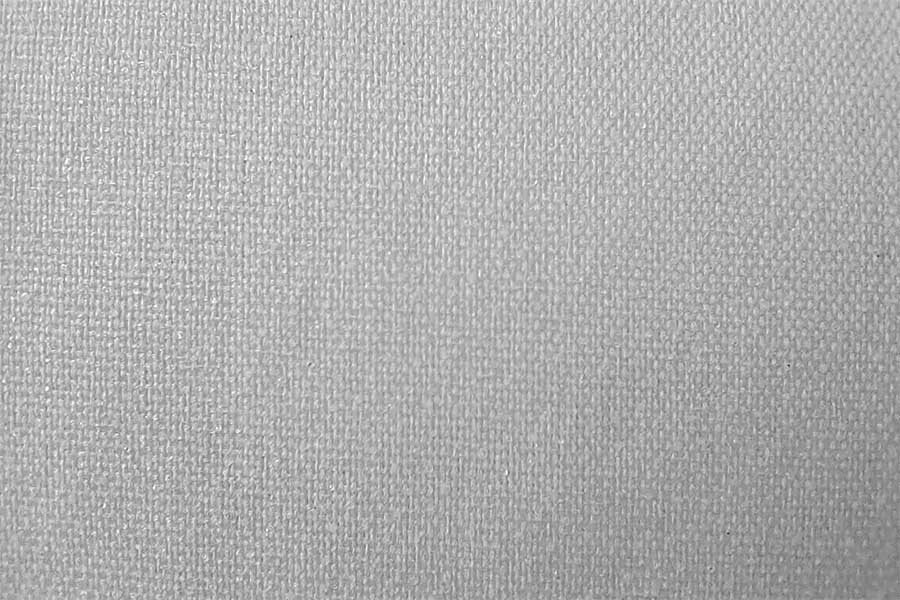

woven dot fusing interlining 5013-2

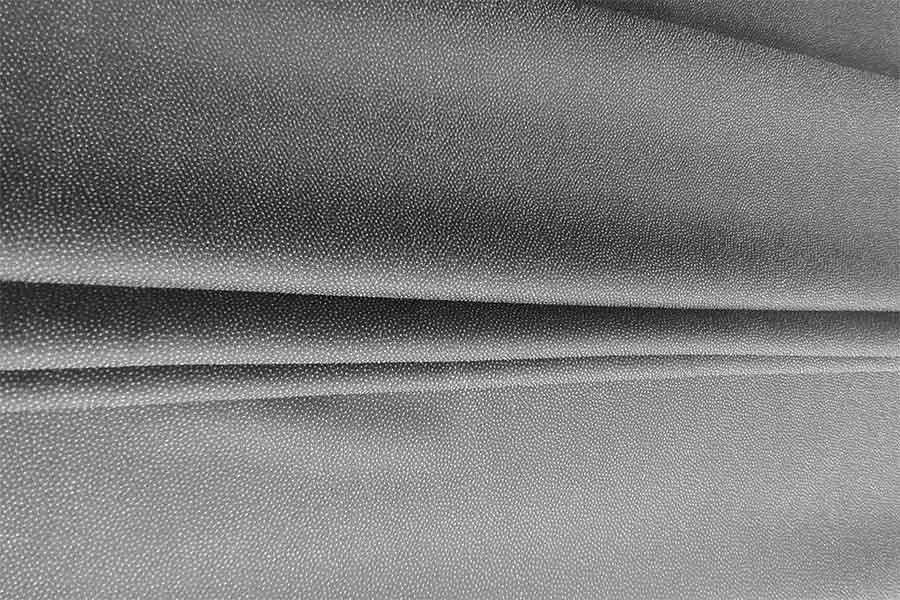

woven dot fusing interlining 5013-3

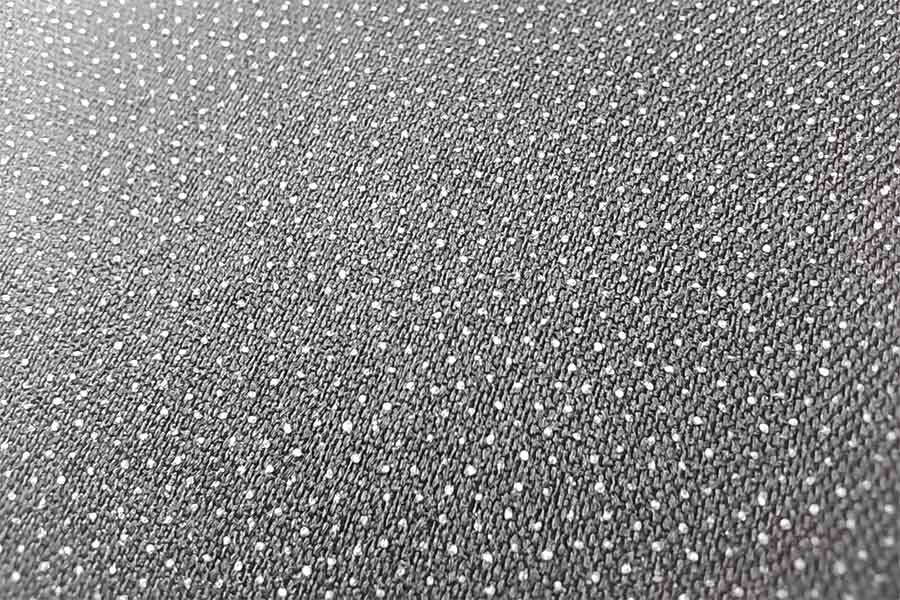

woven dot fusing interlining 5013-4
  • woven dot fusing interlining 5013-1
  • woven dot fusing interlining 5013-2
  • woven dot fusing interlining 5013-3
  • woven dot fusing interlining 5013-4

    • woven dot fusing interlining-5013

    • Specification: 50DX50D, plain base fabric;
    • Coating: double PA or PES coating;
    • Weight: 34+9=43gsm;
    • Width: 122CM/150CM.
    • Colors: offwhite / white / black
    Products color

    specification description

    Dot fusible is currently the most commonly used coating production process in the production of interlining, woven dot fusing interlining include woven microdot fusible interlining and double dot interlining according to diffrent coating process. And for coating material, can chose PES for better water wash performance, and chose PA for better dry cleaning performance.

    5013 is a typical representative of woven dot fusible interlining, which use 50D woven plain weave base fabric, soft handfeel with limited elasticity, moderate in weight and thickness. It is very suitable for ordinary thin woven garments.

    • Fabric composition: 100% polyester;
    • Yarn count information: 50DX50D, plain;
    • Fabric width: 122cm/150cm;
    • Fabric+coating weight: 34+9=43gsm;
    • Coating: PES/PA, single dot or double dot are optional;
    • Thickness and handfeel: Thin and soft;
    • Elasticity: little elasticity in one way;
    • Thin, suitable for thin clothing;
    • Excellent bond on difficult fabrics such as viscose, acetate, cupro and coated fabrics;
    • Very comfortable to wear;
    • Soft with limited elasticity, comfortable texture;
    • Excellent quality base fabric, not easy to hook, no quality defect;
    • Only use original high quality PA, PES coating, good performance for water wash and dry cleaning;

    The following suggested fusing condition are for reference only, we recommend testing the products before using them in your project.

    fusing condition:

    Coating GlueBonding Machine TypeBonding TemperatureBonding PressureBonding Time
    PA coatingRoller bonding machine125-1451.5-2.5kg/cm212-15S
    PA coatingFlat bonding machine125-1450.8-1.5kg/cm212-15S
    PES coatingRoller bonding machine125-1451.5-2.5kg/cm212-15S
    PES coatingFlat bonding machine125-1450.8-1.5kg/cm212-15S

    Application areas

    Very suitable for all kinds of light and thin clothing, usually woven clothing is more suitable.

    For the fusing of small parts in blouses and dresses and front parts of elastic jackets. Suitable for lightweight, transparent and sensitive fabrics.
